High Efficiency Non - Corrosion Single Screw Extruder / PE Pipe Extrusion Machine

chất lượng tốt Dây chuyền đùn ống nhựa giảm giá
chất lượng tốt Dây chuyền đùn ống nhựa giảm giá
This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

Tôi trò chuyện trực tuyến bây giờ

High Efficiency Non - Corrosion Single Screw Extruder / PE Pipe Extrusion Machine

Trung Quốc High Efficiency Non - Corrosion Single Screw Extruder / PE Pipe Extrusion Machine nhà cung cấp
High Efficiency Non - Corrosion Single Screw Extruder / PE Pipe Extrusion Machine nhà cung cấp High Efficiency Non - Corrosion Single Screw Extruder / PE Pipe Extrusion Machine nhà cung cấp High Efficiency Non - Corrosion Single Screw Extruder / PE Pipe Extrusion Machine nhà cung cấp High Efficiency Non - Corrosion Single Screw Extruder / PE Pipe Extrusion Machine nhà cung cấp

Hình ảnh lớn :  High Efficiency Non - Corrosion Single Screw Extruder / PE Pipe Extrusion Machine

Thông tin chi tiết sản phẩm:

Place of Origin: ShanDong China
Hàng hiệu: AORUI
Chứng nhận: CE UL CSA
Model Number: SJ120/33

Thanh toán:

Minimum Order Quantity: 1 set
Giá bán: Negotiable
Packaging Details: Fumigationwood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month
Contact Now
Chi tiết sản phẩm
Certificate: CE ISO9001 After-sales service: Engineers availiable to service
Hàng hiệu: Aorui Automatic grade: Fully automatic
Material: PP PE Place of original: Shandong , China
Application: Pipe Screw Design: Single screw

Cold And Hot Water Supply Pipe Extrusion Line , PE Pipe Production Line , Making Machine





Quick detail:



1. PP-R, PE Cold/Hot Water Pipe Production Line is mainly used to produce pipes of various diameters and thickness, which are used in various fields such as water supply system, industrial water conveying system, compressed air transportation, etc. During the developing history, the PP-R pipe is the latest product, has the advantages of low prices, innocuity, non-corrosion, high temperature resistance and convenient to operate, etc.



2. This production line is developed by our company on the basis of absorbing the international advanced technology, the important parts of screw and die head are specially designed according to the properties of PP-R material. The electrical control uses frequency control, all the main electric parts are imported famous brand products; the total production line has the advantages of high output, stable quality, small deviation of the products, etc.









Description:

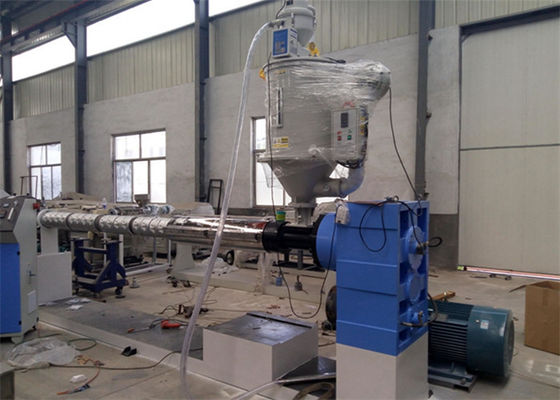

1) Main machine uses PE high efficiency screw, and notch feeder with powerful water cover cooler, which has greatly improved transmitting capability and ensured extruding. DC running electric machine with British speed adjuster

2) Applied for the basket-shaped composite electric head for processing Polythene, which not only ensures the stability of high efficiency extruding, but also achieves the minimum stress and highest pipe quality brought by low melting temperature

3) Adopting high efficiency double-cavity vacuum calibrating technology and spray-paint cooler gullet, which improve the finished product passing rate, and meet the requirements of high speed manufacturing. Vacuum calibrating platform and cooler gullet are all made of stainless steel

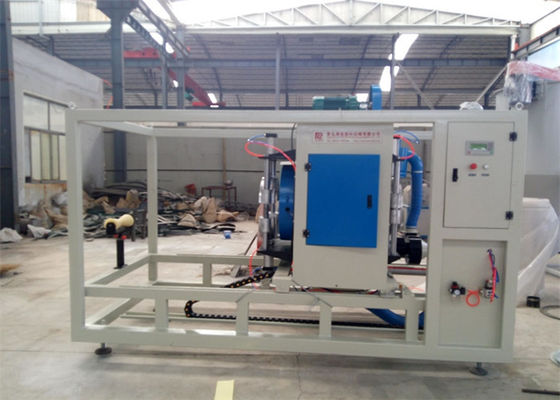

4) Adopting multi-track traction, through the central motor to run all the tracks to reach same height, and ensure roundness of pipes

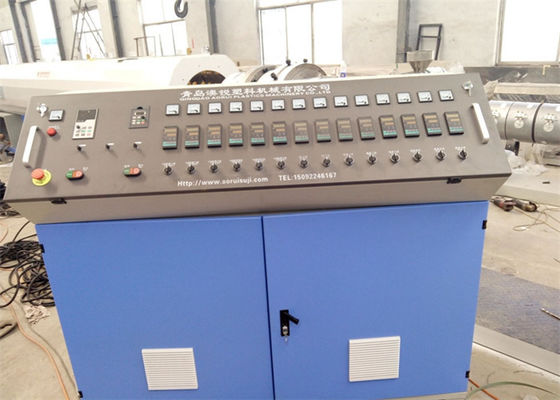

5) Adopting fully automatic control system with high precision, reliable operation, easy and convenient handling

6) Suitable pipe diameter: 20 - 630mm...









.Production Line Strucure



type pipe spec(mm) extruder max.output(kg/h) total power
WR-PE63 20-63 SJ65/33+SJ25/25 100-120 104
WR-PE160 63-160 SJ65/33+SJ25/25 120-300 130
WR-PE250 75-250 SJ75/33+SJ25/25 280-400 260
WR-PE450 160-450 SJ90/33+SJ25/25 500-700 400
WR-PE630 315-630 SJ120/33+SJ25/25 700-900 500
WR-PE800 450-800 SJ150/33+SJ25/25 1000-1100 707











About Our Company:

1. Experience: our company have more than 15 years experence in designing and manufacturing the extrusion equipment.

2. Market: Our products have sold to all over the China exported to all over the world, such as Russia,Kazakhstan, America ect.

3.After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
