Thông tin chi tiết sản phẩm:
|Place of origianl:||Shandong , China||Warranty:||12 months|
|Hàng hiệu:||Aorui||Control systerm:||Siemens control systerm|
|Automatic grade:||Fully automatic||Machine name:||pvc pipe machine|

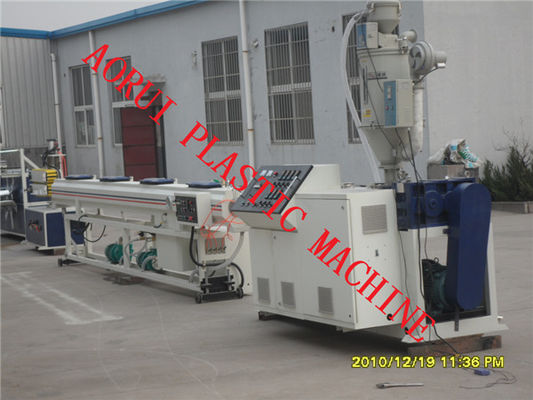

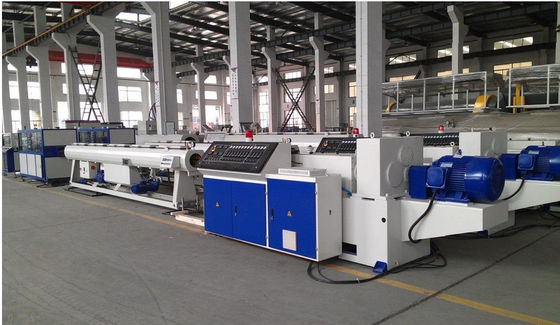

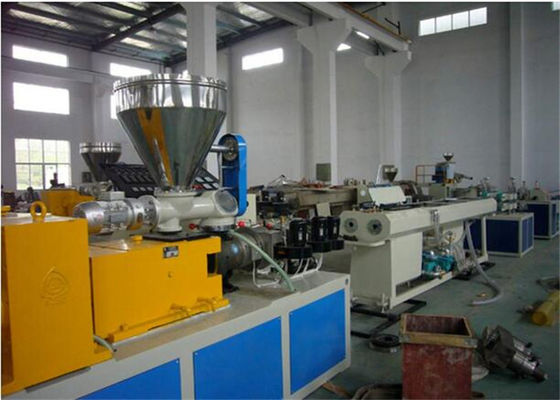

PVC UPVC Plastic Pipe Extruder Machine / PVC Pipe Production Line
1. GF Series plastic pipe production line is mainly used in the manufacture of the plastic PVC pipes with various tube diameters and wall thickness in the aspects such as the agricultural an agricultural and constructional plumbing, cable laying etc.
2. The line is applicable to the production of PVC plastic rib spiral reinforced hose (also known as plastic rib reinforced hose). The level of automation and technological process has reached the advanced international level.
crushing resistance, negative pressure, flexural, liquidity is very good
the level of automation and technological process has reached the advanced international level.
1. Work process:
Raw and additive---mixed ---feed —heating ---enter the extruder.---- extrude the mould–adjust diameters- –cooling –hauling-cutting -stacking –packing.
2. This line is composed by conical twin screw extruder, mould, vacuum calibration tank, haul-off, cutter and stacker etc. The extruder and haul-off adopt imported AC frequency control device, vacuum pump and haul-off motors adopt high-quality brand. The haul-off methods are two-claw, three-claw, four-claw, six-claw, eight-claw etc. You may choose saw cutting type or planetary cutting type. It is additionally attached with the length counter and intensifying device.
3. The equipment is with the reliable performance and high production efficiency. Our company can also manufacture special pipe production lines, for example, Spiral silencing pipe and core foaming pipe according to your requirements.
ACERETECH has been adhering to "scientific innovation" business philosophy, constantly explore the innovation through stability of U-PVC pipe Production technology and actively research new technology.
Main Technical Parameter
|pipe dia (mm)||φ16-φ63||φ75-φ160||φ125-φ250||φ180-φ315||φ200-φ450||φ355-φ630|
|vacuum tank length(mm)||6000||6000||6000||6000||6000||6000|
|Vacuum degree (Mpa)||-0.03-0.08||-0.03-0.08||-0.03-0.08||-0.03-0.08||-0.03-0.08||-0.03-0.08|
|working hauling length(mm)||1000||1500||1500||1500||1800||1600|
|compressed air (m3/h)||0.4||0.6||1.0||1.2||1.5||2.0|
|water comsuption (m3/h)||5||6||7||8||9||12|
|Total length of line (m)||20||22||30||30||36||42|
This series PVC pipe extrusion line is mainly in the manufature of plastic PVC pipes with various diameters and wall thickness used in the industrise such as agricultural and constructional plumbing,cable laying etc.
Our competetive advantages:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
