Fully Automatic Double Screw Pvc Drainage Pipe Production Line 380V 50HZ

Trung Quốc Fully Automatic Double Screw Pvc Drainage Pipe Production Line 380V 50HZ nhà cung cấp
Fully Automatic Double Screw Pvc Drainage Pipe Production Line 380V 50HZ nhà cung cấp Fully Automatic Double Screw Pvc Drainage Pipe Production Line 380V 50HZ nhà cung cấp Fully Automatic Double Screw Pvc Drainage Pipe Production Line 380V 50HZ nhà cung cấp

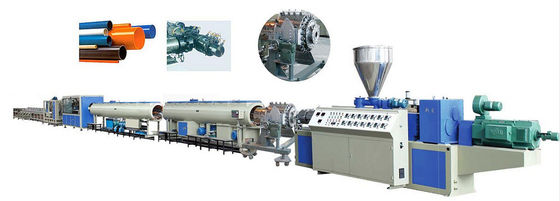

Hình ảnh lớn :  Fully Automatic Double Screw Pvc Drainage Pipe Production Line 380V 50HZ

Thông tin chi tiết sản phẩm:

Place of Origin: ShanDong China
Hàng hiệu: AORUI
Chứng nhận: CE & ISO9001
Model Number: SJSZ51/105

Thanh toán:

Minimum Order Quantity: 1 set
Giá bán: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Chi tiết sản phẩm
Model Number: SJSZ51/105 Type: Pipe extruder
Efficiency: High Voltage: 380V 50HZ
Plastic processed: PVC After-sales service: Engineers availiable to service
Screw design: Double screw Automatic grade: Fully automatic

Fully Automatic PVC Drainage Pipe Extrusion Production Line , PVC Pipe Extruder Machines



Quick detail


1. Features of pvc pipe extrution machines: Twin screw extruder and haul-off unit have applied imported A/C inverter. Both vacuum pump and driving motor have applied excellent products. The drawing machine includes two-claw type,  three-claw type , four -claw type,  six-claw type , eight - claw type , etc.



2. Process Flow:
PP/PE/PVC/PA/PB/EVA material→Automatic loader →Electrical control system→Single screw extruder→Head die and mould →Mouth mould and core mould→Mould block→Forming machine→Winder




Description:


1. The machine is used to produce PVC drainage pipe, PVC rigid pipe, PVC electrician wiring casing pipe etc; Applied materials: PVC powder;



2. Features and advantages:

(1) Conical twin screw extruder is adopted, thus PVC powder material is ok for direct production, no need to make powder material, which is work-saving and energy-saving, high efficiency;

(2) Matured production technology and die, 2pcs or 4pcs pipes could be extruded at the same time, very high production efficiency;

(3) Make Φ16-800mm outer diameter pipes.





3. Main machine list:



1. Conical twin screw extruder

2. Die head. Due to the diameter, it can be single, double and four die head
3. Vacuum Calibrating Machine: Due to diameter, it can be designing of single, double vacuum chambers

4. Haul-offs: Due to diameter, it can be designing of double, three, four, six, eight caterpillars
5. Pipe Cutting machine: Due to diameter, it can be designing of saw cutter or planetary cutter





Main Technical Parameter



model PVC63 PVC160 PVC250 PVC315 PVC450 PVC630
pipe dia (mm) φ16-φ63 φ75-φ160 φ125-φ250 φ180-φ315 φ200-φ450 φ355-φ630
vacuum tank length(mm) 6000 6000 6000 6000 6000 6000
Vacuum degree (Mpa) -0.03-0.08 -0.03-0.08 -0.03-0.08 -0.03-0.08 -0.03-0.08 -0.03-0.08
Max.traction (N) 10000 15000 20000 25000 30000 50000
hauling speed(m/min/max) 10 6 4 3 2 1.4
working hauling length(mm) 1000 1500 1500 1500 1800 1600
compressed air (m3/h) 0.4 0.6 1.0 1.2 1.5 2.0
water comsuption (m3/h) 5 6 7 8 9 12
Total length of line (m) 20 22 30 30 36 42




Application:

This series PVC pipe extrusion line is mainly in the manufature of plastic PVC pipes with various diameters and wall thickness used in the industrise such as agricultural and constructional plumbing,cable laying etc.



Our competetive advantages:


  • 24 hours services;
  • Overseas installation;
  • Free operation training and technology formula transfer;
  • Old machine update;
  • Spare parts and maintenance with reasonable cost price.
