16-630mm Extrusion Blow Moulding Machines Plastic PE Pipe Production Line

Trung Quốc 16-630mm Extrusion Blow Moulding Machines Plastic PE Pipe Production Line nhà cung cấp
16-630mm Extrusion Blow Moulding Machines Plastic PE Pipe Production Line nhà cung cấp 16-630mm Extrusion Blow Moulding Machines Plastic PE Pipe Production Line nhà cung cấp 16-630mm Extrusion Blow Moulding Machines Plastic PE Pipe Production Line nhà cung cấp 16-630mm Extrusion Blow Moulding Machines Plastic PE Pipe Production Line nhà cung cấp

Hình ảnh lớn :  16-630mm Extrusion Blow Moulding Machines Plastic PE Pipe Production Line

Thông tin chi tiết sản phẩm:

Place of Origin: ShanDong China
Hàng hiệu: AORUI
Chứng nhận: CE & ISO9001
Model Number: SJ90/33

Thanh toán:

Minimum Order Quantity: 1 set
Giá bán: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Chi tiết sản phẩm
Certificate: CE ISO9001 Automatic grade: Fully automatic
Voltage: 380V 50HZ Condition: New
Place of original: 380V 50HZ Port: Qingdao
Temperature control: Omron Screw Number: One

Extrusion Blow Moulding Machines Plastic PE Pipe Production Line , PE Pipes Extrusion Line





Quick detail



PE/PP/PPR pipe production line with price

1. Diameter: 16-630mm,
2. Output: 150-1000kg/h,
3. Extrusion speed: 0.1-15m/min,
4. Installed power: 85-480kw





Process

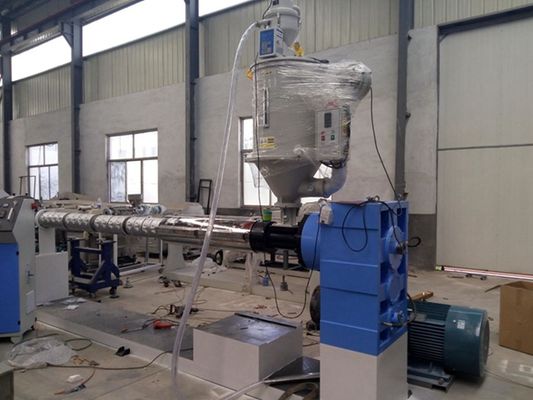

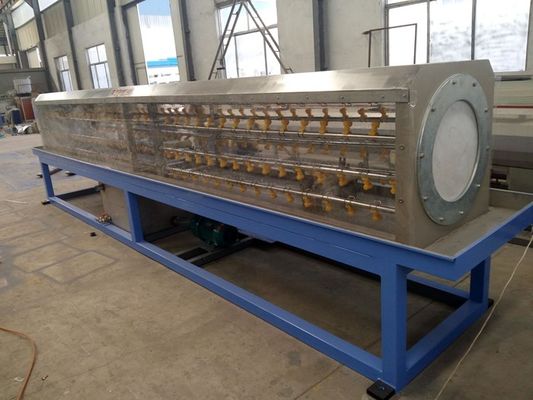

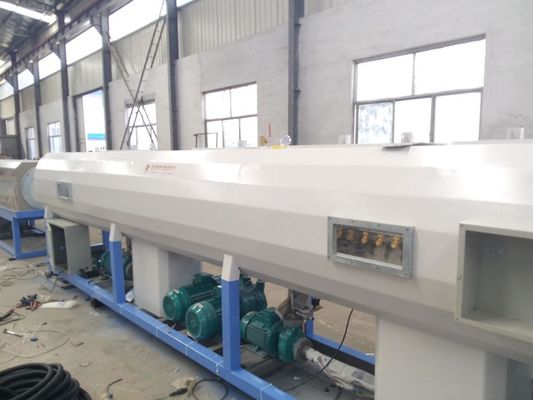

material Hopper Dryer and Auto charger → PE pipe extruder → marking line extruder → mould → calibrator → vacuum calibration tank → spray cooling water tank → printer → haul-off → cutter → pipe discharging rack







Description:



1. The Screw of the extruder is equipped with barrier unit and mixing structure, and the barrel owns new style grooves. All of these offer good plastification and mixing effect. Special design of basket die head for HDPE(PP,PPR,ABS) large diameter pipe with thick wall offer lower melting temperature, good mixing,lower pressure of cavity, and stable production.

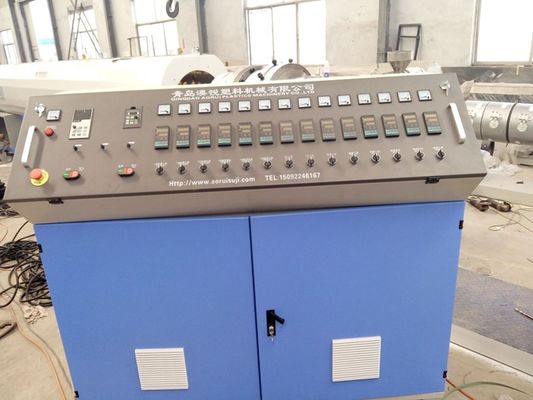

2. Specail design cacumm sizing tank can ensure the stability of size and roundness.Speed controllers are used in extruder. haul-off offer stability and precision. The whole line adopts PLC control system and large liquid crystal screen, which makes the operation very convenient. The line can be equipped with another extruder used for extruding the mark line.



3. The optimum spiral structure feeding throat highly improves the output of extrude

.Accurate temperature control system ensures materials melting performance. Unique screw design achieves better plasticizing and high quality products. Precisely designed gearbox with a high torsion guarantees stable running. "H" shape frame to decrease vibrating of extruder.



4. Advanced PLC operation system realizes synchronization and automation. Adopt automatic water temperature & level control and special independent filters on both vacuum and cooling tanks .Offer stable haul-off unit with 2-12 caterpillars. Provide saw & chip-free cutting options. Low energy consumption, excellent performance, and easy maintenance









Application of PE Pipe Production Line:



High Quality PE HDPE Pipe Production Line / Plastic Water Pipe HDPE Extrusion Making Machine

This qualified extrusion line is main for producting PE pressure pipes,discharge pipe line for chemical and food fields,protection and conduit pipes for electrie cables and communication wire,fishpond edge guardrail pipes etc.









Main Technical Parameters





Model Parameters LGSJ-110 LGSJ-130 LGSJ-150 LGSJ-180 LGSJ-210
Screw diameter (mm) 110 130 150 180 210
Screw length(mm) 2000 2200 2400 2600 2800
Machine power(kw) 22 30 37 45 55
screw rotate speed (r/min) 55-60 50-55 45-50 40-45 35-40
Changer motor power(kw) 1.5 1.5 1.5 1.5 2.2
Production capacity(kg/h) 80 100 150 200 250
Matched pelleter power (kw) 1.1 1.1 1.1 1.1 2.2
Matched crusher/washer power (kw) 18.5/7.5 18.5/7.5 22/11 30/15 37/18.5
Crusher & washers production capacity (kg/h) 400 450 500 600 600
3+1PH380V50HZ PC Machine installed power 60 80 100 120 140









  •
  •
  •
  •











Our Competitive Advantages:



1. experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology

2. Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.

3. After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.



16-630mm Extrusion Blow Moulding Machines Plastic PE Pipe Production Line
