Thông tin chi tiết sản phẩm:
|Screw Number:||SJSZ80/156||Chứng nhận:||CE & ISO9001|
|Hàng hiệu:||AORUI||Frequency Control:||ABB|
|Application:||WPC construction template making machine||Automatic grade:||Fully automatic|
WPC Board Construction Template Production Line / Extruder / Plastic Machine

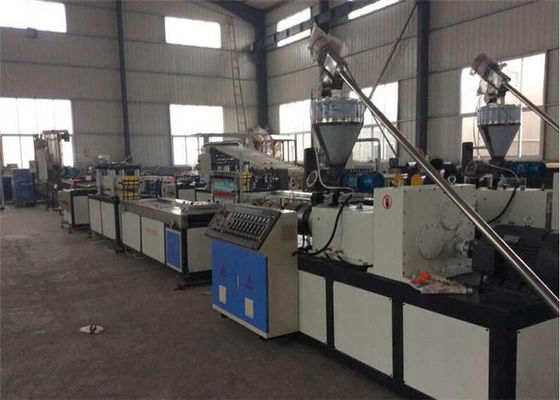

The System configuration of wpc construction templates production line
1. The main twin screw extruder

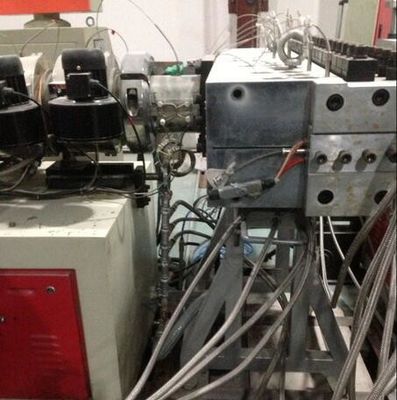

2. WPC door board mould

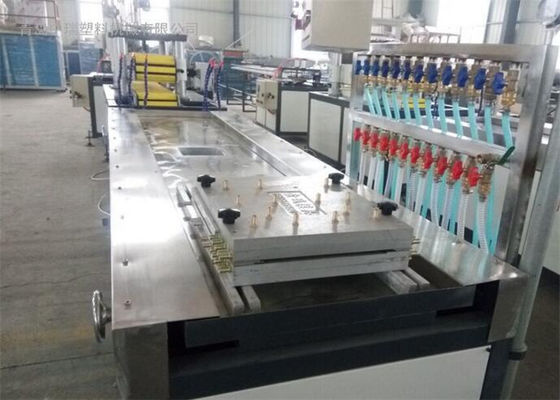

3. Vacuum Calibrating Platform
4. Haul Off Machine
5. Cutting Machine
7. Auxiliary parts: High Speed Cooling Mixer and Plastic Crusher
Process flow of wpc construction templates production line
Raw material + Wood powder + Additive → Mixing → Granules → Conical twin screw extruder → Profile extrusion mould → Cooling molding die → Vacuum calibrating table → Haul off → Cutter → Tilting stacker→Finished products inspecting and packing
The wood-plastic construction template is a new type of template to replace steel templates and bamboo plastic sheet. With light weight, impact strength, convenient assembling, high turnover, smooth surface, no moisture, no mildew, acid, does not crack, WIDTH, less joints, sawing, nailing, can be processed into any length, and many other advantages. Can be repeatedly recycled more than 20 times, the price is far lower than the current construction industry to use bamboo template, and has excellent flame retardant properties, from the self-extinguishing of fire, smoke-free, without any gas. The new generation of safe green energy-saving products.
Our production lines have two extruders co-extrusion type and three extruderrs co-extrusion type. Our extruders adopt specially designed screw. we did a lots of study from process to formula. The performance of our machinery and ewuipment reached the international advnced level.
The plates produced by our production line have no cracking and non-deformation in high temperature . Usually the template can be used for more than 30 times, and maximum can be used for 50 times.
The wpc plate has the same characteristics as wood boards: which can enailed , can be sawed , can be drilled , can be planed , can be sculptured. With the exclusive formula developed by our company , there is no need to granulate the material , which is cost savings and labor saving.
WPC foam board making machine line are applied in PVC powder+Wooden powder+other additives raw material to produce kinds of wpc foaming board. Adopting our company’s special design and unique processing, these lines can produce different proportion (0.55-0.95) profile wood plastic products to meet customer’s needs. With different products, we can match different performance twin extruder or single extruder which equipped with auxiliary devices such as vacuum forming machine, haul-off and cutting machine, loading shelves to optimize its capacity. By using moulds which are specially designed with customer’s products, customer can produce the products that they need.
|Main extruder power||KW||75||75||37|
|Max. product width||mm||600||1220|
|Total power of auxiliary machine||KW||35||40|
|Cooling water consunmption||m3/h||9||12|
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
