20 - 630 mm Single Screw Extruder Plastic PE Pipe Production Line For Irrigation

Trung Quốc 20 - 630 mm Single Screw Extruder Plastic PE Pipe Production Line For Irrigation nhà cung cấp
20 - 630 mm Single Screw Extruder Plastic PE Pipe Production Line For Irrigation nhà cung cấp 20 - 630 mm Single Screw Extruder Plastic PE Pipe Production Line For Irrigation nhà cung cấp 20 - 630 mm Single Screw Extruder Plastic PE Pipe Production Line For Irrigation nhà cung cấp 20 - 630 mm Single Screw Extruder Plastic PE Pipe Production Line For Irrigation nhà cung cấp

Hình ảnh lớn :  20 - 630 mm Single Screw Extruder Plastic PE Pipe Production Line For Irrigation

Thông tin chi tiết sản phẩm:

Place of Origin: ShanDong China
Hàng hiệu: AORUI
Chứng nhận: CE & ISO9001
Model Number: SJ65/33

Thanh toán:

Minimum Order Quantity: 1 set
Giá bán: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Chi tiết sản phẩm
Condition: New Payment terms: TT or L/C
Frequency control: ABB Motor: Siemens
Model Number: SJSZ80/156 Hàng hiệu: AORUI
Certificate: CE & ISO9001 Voltage: 380V 50HZ

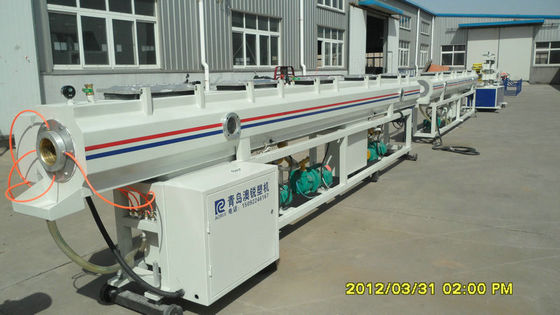

20-630mm Single Screw Plastic PE Pipe Production Line For Irrigation



Quick detail



1. Extruder designed by AORUI Machinery adopts big L/D and multi mixing structure, which is more suitable for the PE low temperature extrusion production. Specially-designed spiral moulds for PE pipes, with inside oil controlling temperature system.



2. Specially designed 2-3 co-extruding die , reasonable channel , smooth outside and inside wall , and little internal stress. May be used to produce HDPE silicon core tube , ordinary PP-R , PE , PEX and PE-RT pipes.


Description:



1. HDPE / PE Pipe is mainly used for in the area of agricultural water supply system, architectural water supply and draiange system, pavement of cables and gas supply etc.

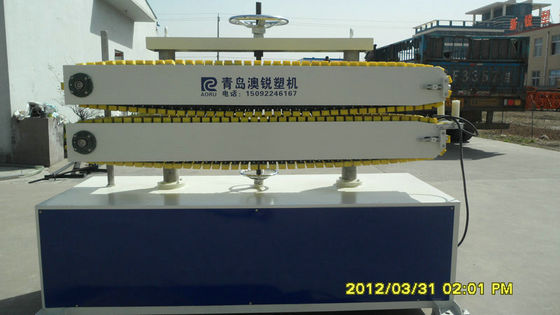

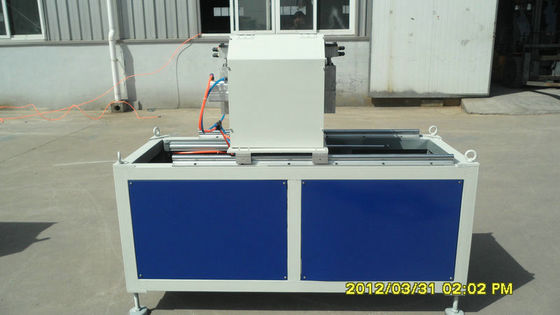

2. Our HDPE / PE Pipe Production Line has the features as below:Good design and good outlook: We design the machine for easier operation and stable performance. The haul off machine and cutter is fully closed for safety purpose. Planetary socket is using in some machines for wire connection.



3. This PE pipe extrusion line can be used in HDPE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, it is a preferred gas and water pipe for ductwork system between city and its suburb, Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.





Main technical parameters



Model
PE-16/63

PE-20/110

PE-50/160

PE-75/250

PE-110/315

PE-200/450

PE-315/630

PE-400/800

Pipe diameter

16-63mm

20-110mm

50-160mm

75-250mm

110-315mm

200-450mm

315-630mm

400-800mm

Max output

150kg/h

200kg/h

300kg/h

350kg/h

400kg/h

500kg/h

850kg/h

850kg/h

Extrusion speed

1-15m/min

1.2-12m/min

0.6-8m/min

0.5-4m/min

0.4-3.7m/min

0.3-3m/min

0.2-2m/min

0.1-1 m/min

Extruder model

SJ-65/30

SJ-65/33

SJ-75/33

SJ-75/33

SJ-75/33

SJ-90/33

SJ-120/33

SJ-120/33

Installed power

85kw

110kw

125kw

180kw

260kw

325kw

480kw

600kw

Center height

1000mm

1000mm

1000mm

1000mm

1100mm

1100mm

1200mm

1300mm

Line length

35m

38m

38m

40m

42m

52 m

60m

68m







Application:



It is mainly used to produce PE water pipe, gas pipe, drain pipe and so on. This set is also suitable for the production of crosslinked PE pipes and other olefine products. Our company can provide you with detailed ingredients and complete manufacture line.





Why choose us:



  • experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
  • Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
  • After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
