ISO CE Double Screw Extruder PVC Garden Pipe Plastic Extrusion Equipment

Trung Quốc ISO CE Double Screw Extruder PVC Garden Pipe Plastic Extrusion Equipment nhà cung cấp

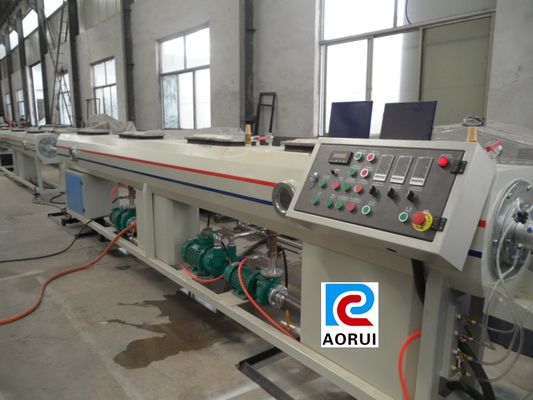

Hình ảnh lớn :  ISO CE Double Screw Extruder PVC Garden Pipe Plastic Extrusion Equipment

Thông tin chi tiết sản phẩm:

Place of Origin: ShanDong China
Hàng hiệu: AORUI
Chứng nhận: CE UL CSA
Model Number: SJSZ65

Thanh toán:

Minimum Order Quantity: 1 set
Giá bán: Negotiable
Packaging Details: Fumigationwood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month
Contact Now
Chi tiết sản phẩm
Plastic Processed: PVC Screw Design: double screw
Condition: New After-sales Service Provided: Engineers available to service machinery overseas
Place of Origin: Shandong , China (Mainland) Dimension(L*W*H): 29*4.2*2.6m
Pay terms: 30% T/T 70% T/T or L/C

ISO CE Double Screw Extruder PVC Garden Pipe Plastic Extrusion Equipment





Quick detail:



1 .  output:60-700kg/h

2 .  ISO&CE standard

3 .  test before delivery









Description:



The working process of PVC conduit pipe making machine:



PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack

1. The pvc hose pipe machinery is suitable to U-PVC,C-PVC,M-PVC,HDPE,LDPE,PPR,PP,ABS pipe extrusion

2. plastic pipe with various diameter and wall thickness, from 16-800mm.

3. the pvc hose garden pipe machinery mainly includes single/twin screw extruder, pipe extrusion die, vacuum calibrating water tank, spray cooling water tank, hauling unit, cutting unit and stack unit.the extruder is specially designed for producing PVC pipe.

4.adoped the Simens, ABB, Schneider famous brand electric components and high quality extruder alloy screw and barrel

5. Supply technical service, formula guide and staple raw material purchase

6.Our plastic extruder use good quality screw in plastic machinery.Our plastic machine have long-life.



Specifications:



Main Technical Parameters

MODEL

PVCG-110

PVCG-160

PVCG-250

PVCG-315

PVCG-400

PVCG-630

MATCHED EXTRUDER

SJZ51/105

SJZ65/132

SJZ65/132

SJZ80/156

SJZ80/156

SJG92/188

OD RANGE(mm)

50-110

50-160

75- 250

110-315

200-400

315-630

LENGTH OF VACUUM

CALIBRATOR TANK(mm)

6000

6000

6000

6000

6000

6000

HAUL SPEED(m/min)

0.6-6

0.5-5

0.4-4

0.3-3

0.2-2.5

0.2-1.5

INSTALLED POWER(kw)

67

85

95

125

135

255

TOTAL LENGTH9(mm)

17000

18000

20000

20500

28000

30000





Applications:



1 . It is mainly used to produce PVC conduit pipe.

2 . After-sales Service Provided: Engineers available to service machinery overseas

3 . mould: change molds to produce different pipe products.











Competitive Advantage:



1 . energy saving
2 . good plasticity
3 . long working time
