PVC Water Pipe Extrusion Machinery , PVC Conical Double Screw Production Line

chất lượng tốt Dây chuyền đùn ống nhựa giảm giá
chất lượng tốt Dây chuyền đùn ống nhựa giảm giá
This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

Tôi trò chuyện trực tuyến bây giờ

PVC Water Pipe Extrusion Machinery , PVC Conical Double Screw Production Line

Trung Quốc PVC Water Pipe Extrusion Machinery , PVC Conical Double Screw Production Line nhà cung cấp

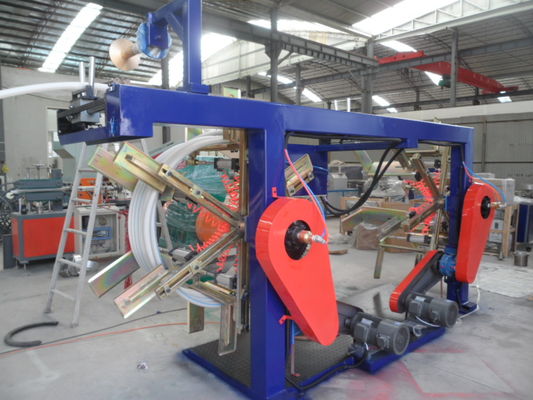

Hình ảnh lớn :  PVC Water Pipe Extrusion Machinery , PVC Conical Double Screw Production Line

Thông tin chi tiết sản phẩm:

Place of Origin: ShanDong China
Hàng hiệu: AORUI
Chứng nhận: CE UL CSA
Model Number: SJSZ-65/33

Thanh toán:

Minimum Order Quantity: 1 set
Giá bán: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month
Contact Now
Chi tiết sản phẩm
Condition: New Application: water pipe
Type: Pipe Production Line Production Capacity: 120-800kg/h
Warranty: one year Place of Origin: Shandong , China (Mainland)



PVC Water Pipe Extrusion Machinery , PVC Conical Double Screw Production Line



Quick detail:



 Pipe material: PVC



 Type: pipe production line



 Brand name : AORUI





Description:



1. Model SJZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.



2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.



3. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.



4. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.



5. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.



6. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.





Specifications:



Model

Main Machine (extruder)

Quantity of Module

Specification of Pipe(mm)

SDSB 160

SJ 65/33×2 (PE)

40

Φ50-Φ160

SJSZ 51×105,

SJSZ 65×132 (PVC)

SDSB 800

SJ 150/35×2 (PE)

40

Φ400-Φ800







Applications:



1 . Water supply and drainage pipelines in building; Rainwater drainage pipelines in building;



2 . The pipes are widely used in the fields of electricity wire sleeve, urban water supply and drainage system, agricultural irrigation pipe, underground filtration irrigation and the water supply or drainage system in buildings, etc.







Competitive Advantage:



1 . high output
2 . energy saving
3 . good plasticity
4 . long working time
