Full Automatic Electric Wire Plastic Pipe Extrusion Line Double Screw Extruder

Trung Quốc Full Automatic Electric Wire Plastic Pipe Extrusion Line Double Screw Extruder nhà cung cấp

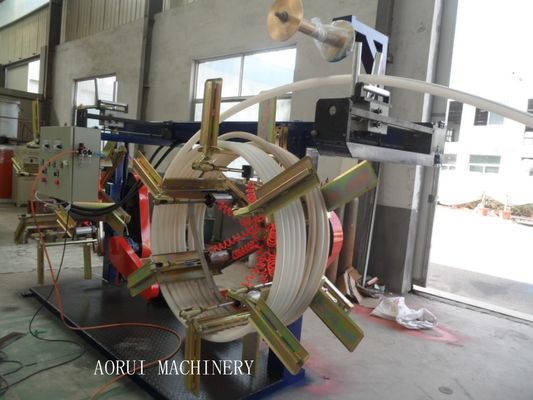

Hình ảnh lớn :  Full Automatic Electric Wire Plastic Pipe Extrusion Line Double Screw Extruder

Thông tin chi tiết sản phẩm:

Place of Origin: ShanDong China
Hàng hiệu: AORUI
Chứng nhận: CE UL CSA
Model Number: SJSZ65

Thanh toán:

Minimum Order Quantity: 1 set
Giá bán: Negotiable
Packaging Details: Fumigationwood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month
Contact Now
Chi tiết sản phẩm
Plastic Processed: PVC Type: Plastic Production Line, Plastic Extrusion Line
Screw Design: double screw Automatic Grade: Full Automatic
Application: Pipe Screw&barrel: 30CrMoAlA
Place of Origin: Shandong , China (Mainland)



PVC Plastic electric wire pipe Production Line , PVC Plastic Pipe Extrusion Machinery





Quick detail:





Screw design : double screw

After-sales Service Provided: Engineers available to service machinery overseas

mould: change molds to produce different pipe products.





Description:



The working process of PVC conduit pipe making machine:



Raw material+additive → mixing → feeding → conical double screw extruder → "one mould four pipes"mould →

vacuum calibration tank →  haul-off → cutting machine → stacker



It is mainly used in producing various diameters and wall-thickness of PVC pipes for aggriculture and

constructional plumbing cable laying etc.



Our PVC pipe extrusion machine has features of low consumption, high output, stable running etc.



The standard PVC pipe extrusion machine include: material charger, SJZ series conic twin screw

extruder, mould, vacuum calibration tank, spray cooling tank(for big pipe), haul-off, cutter, stacker.



Clients also can choose double/four PVC pipe extrusion line to make small size PVC pipes.



The main electrics for PVC pipe extrusion machine only adopt Siemens motor, siemens contactor,

ABB inverter, Omron temperature meter.



All of our PVC pipe extrusion machine will be tested before delivery, and we will invite our cients to

come and testing the whole line with us together.





Specifications:



Main Technical Parameters

MODEL

PVCG-110

PVCG-160

PVCG-250

PVCG-315

PVCG-400

PVCG-630

MATCHED EXTRUDER

SJZ51/105

SJZ65/132

SJZ65/132

SJZ80/156

SJZ80/156

SJG92/188

OD RANGE(mm)

50-110

50-160

75- 250

110-315

200-400

315-630

LENGTH OF VACUUM

CALIBRATOR TANK(mm)

6000

6000

6000

6000

6000

6000

HAUL SPEED(m/min)

0.6-6

0.5-5

0.4-4

0.3-3

0.2-2.5

0.2-1.5

INSTALLED POWER(kw)

67

85

95

125

135

255

TOTAL LENGTH9(mm)

17000

18000

20000

20500

28000

30000





Applications:



1 . Capacity: Conical twin-screw extruder, suitable for process PVC powder with high capacity, max 600KG/H



2 . Diameter: our company succeed in designing and producing the biggest conical twin-screw extruder in the world. Max production diameter reach 630mm.



3 . Auxiliary machine closely meet customer specifications. Nice appearance, automatic control and stable running performance.









Competitive Advantage:



1 . good after-service

2 . gurantee:one year or according to customer’s requirement.

3 . advanced technology and better quality
