Single Wall Corrugated Plastic Pipe Manufacturing Machine for Cable

chất lượng tốt Dây chuyền đùn ống nhựa giảm giá
chất lượng tốt Dây chuyền đùn ống nhựa giảm giá
This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

Tôi trò chuyện trực tuyến bây giờ

Single Wall Corrugated Plastic Pipe Manufacturing Machine for Cable

Trung Quốc Single Wall Corrugated Plastic Pipe Manufacturing Machine for Cable nhà cung cấp
Single Wall Corrugated Plastic Pipe Manufacturing Machine for Cable nhà cung cấp Single Wall Corrugated Plastic Pipe Manufacturing Machine for Cable nhà cung cấp Single Wall Corrugated Plastic Pipe Manufacturing Machine for Cable nhà cung cấp

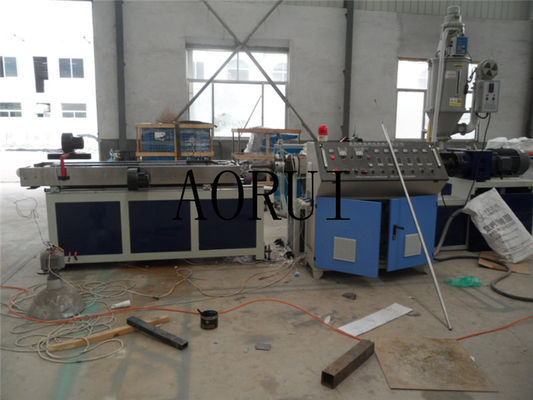

Hình ảnh lớn :  Single Wall Corrugated Plastic Pipe Manufacturing Machine for Cable

Thông tin chi tiết sản phẩm:

Place of Origin: ShanDong China
Hàng hiệu: AORUI
Chứng nhận: CE
Model Number: SJ65

Thanh toán:

Minimum Order Quantity: 1 set
Giá bán: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Chi tiết sản phẩm
product type: corrugated pipe Power: 11-125KW
Capacity: 300kg/h Type: Plastic Production Line, Plastic Extrusion Line
Screw Design: Single Screw process: extrusion
Application: Pipe



Single Wall Corrugated Plastic Pipe Extrusion Line for Cable , Corrugated Pipe Extruder





Quick detail:



1. Ideal for basin, sink, dish washer, bathtub drainage hose
2. Sewer hose for other use
3. material: PP EVA PVC PE
4. one extruder also can make metal spiral corrugation hose







Description:





    SJDBGZ seies plastic single-wall corrugated pipe production line developed by our company adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.These corrugated pipes are especially used as wires of the up-market cars.





  high production speed for the single-wall corrugated pipe machine:

 20-30m/min, with water cooling, with new technology mould blocks, the line speed can reach to 20-30m/min, it is about three times of others. As our forming machine is equipped with 72 pairs of mould blocks, but the normal one only with 50 pairs.









Specifications:



Diameter Scope

4.5-9

9-32

32-50

Main Extruder

SJ-30

SJ-45

SJ-65

L/D

30:1

30:1

30:1

Output kg/h

10

40

80

Main Motor Power kw

4

11

18.5

Corrugator Power kw

1.1

1.5

1.5

Mould Block Pairs

42

44

44

Cooling Type

Water and air cooling

Linear Speed (m/min)

6-10

8-12

8-15

Counting Type

Sensing counting

Winding Type

Automatic/Manual





Applications:



1.  high temperature resistance,resistant to corrosion and abrasion,high intensity,good flexibility,etc.

2. They are widely used in fields of protective pipes of lamps and lanterns wire,tubes of air conditioner and washing machine,etc.









Competitive Advantage:



1. Except one year quality guarantee,we will provide after-sell service for all the life.

2. For long-term cooperation, we always provide good quality, good price and good service to customer.

3. we are the professional and trustable supplier for turnkey projects
